Our Services and Products
Current Standard Range
Manufactured to order.
Available in two temperature ranges.
-60°C to 150°C and -60°C to 250°C.
Most requested sockets for IC packages:
SOIC
-Narrow
-Wide
-Fine Pitch
-Increased Creepage
SOP
-TSSOP
-MSOP
QFP
-LQFP
-TQFP
-MQFP
CSP / QFN
-LFCSP
LCC
-JLCC
DPAK
-DDPAK
New IC Package Styles
We are always happy to look at manufacturing solutions for new style IC packages or adaptations.
Custom Solutions
We can supply our standard range with requested custom features or develop a new custom design.
Legacy Products
We support and manufacture our legacy parts that can be reordered. This is often the case when the socket has to match a customers pre-existing board design.
Components that make up a full Socket Assembly
Example Shown is for a 24-TSSOP

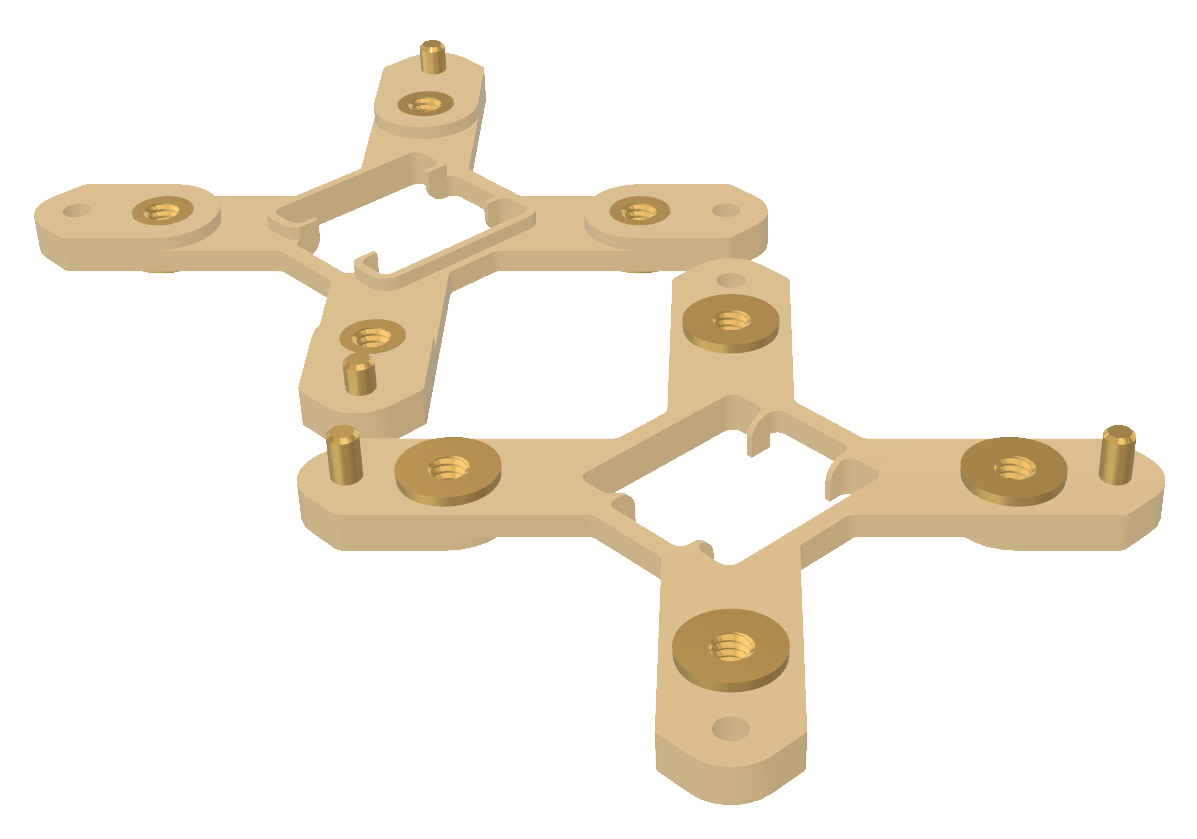

Base Component
Body - PEEK
M2 Inserts - Brass
Alignment Pins - Brass

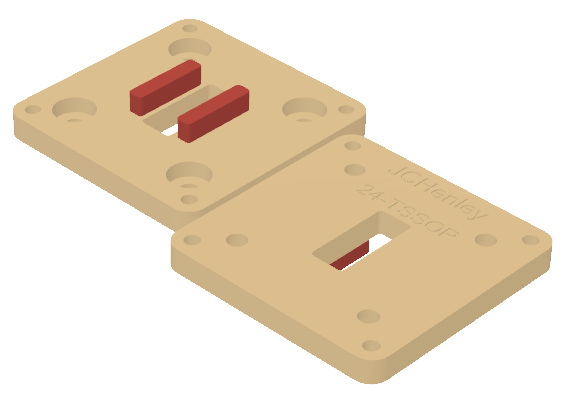

Lid Component
Body - PEEK
Press Down Bars - Hard Silicone Rubber

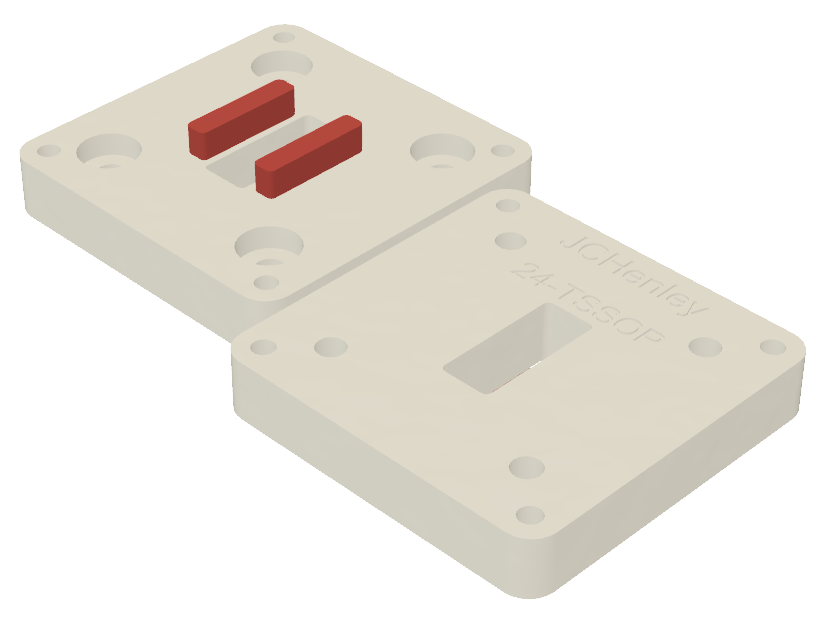

Lid Component
Extended Temperature
Body - Ceramic
Press Down Bars - Hard Silicone Rubber
Fastenings to mount Base on PCB and clamp Lid to Base options

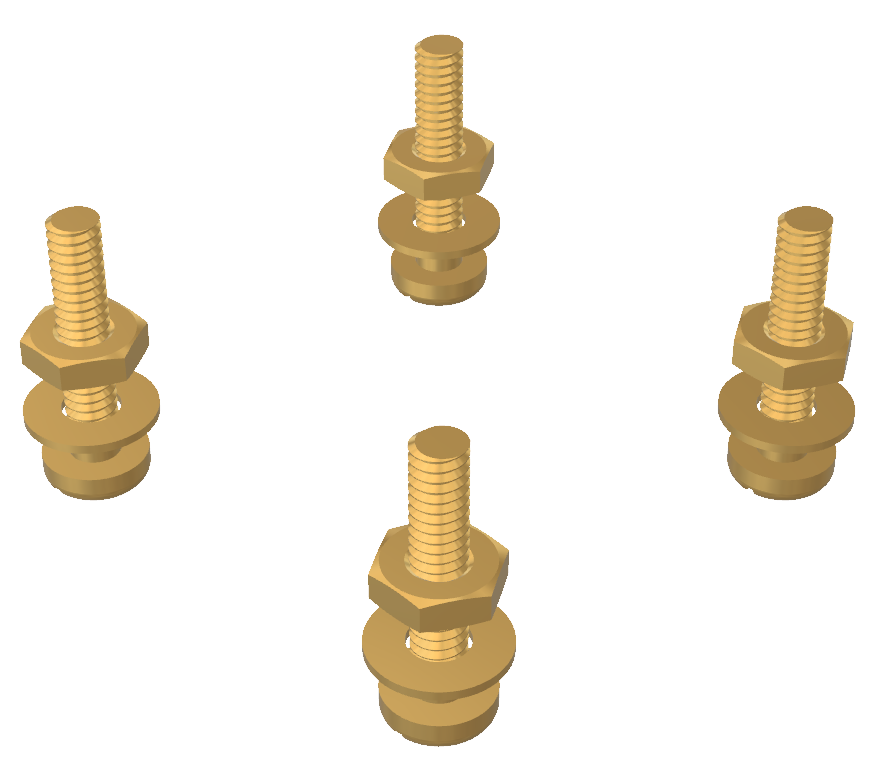

Base Fastenings
M2 Machine Screw - Brass
M2 Washer - Brass
M2 Half Nut (Lock) - Brass

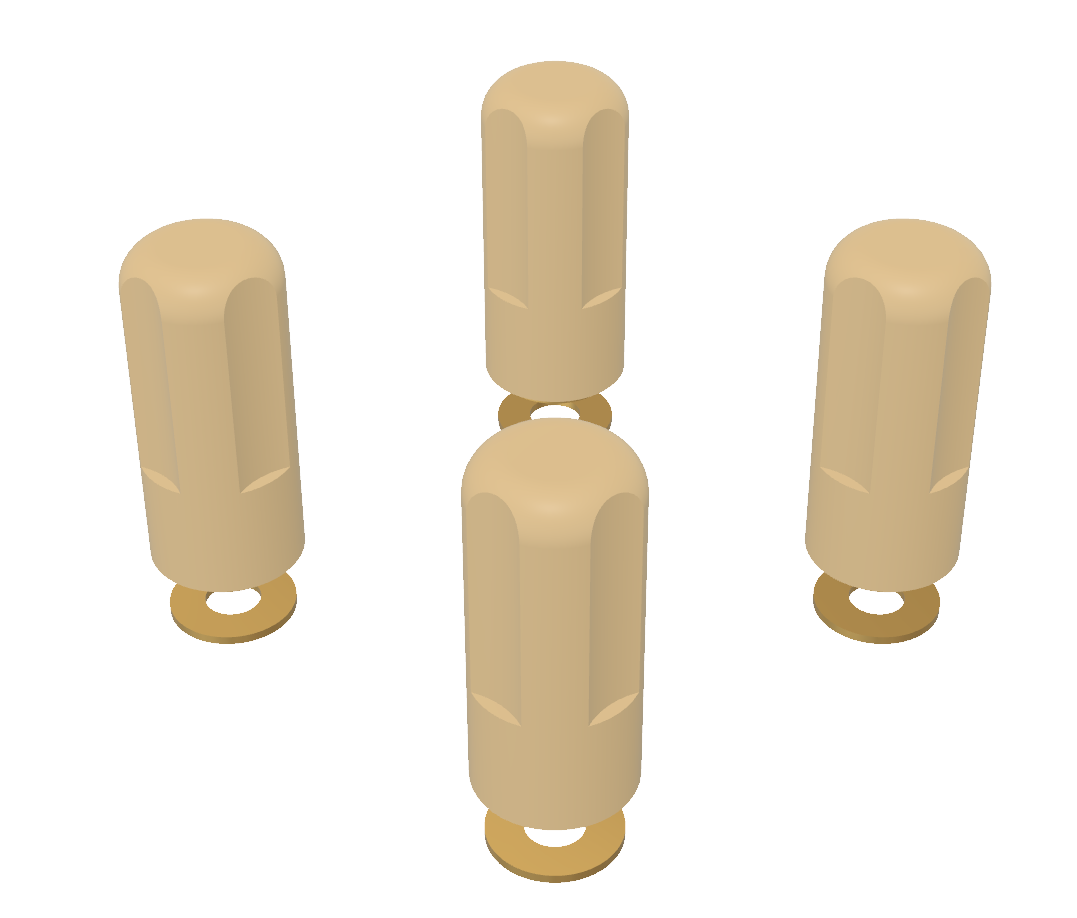

Lid Thumb Nuts
Body - PEEK
M2 insert - Brass
M2 Washer - Brass

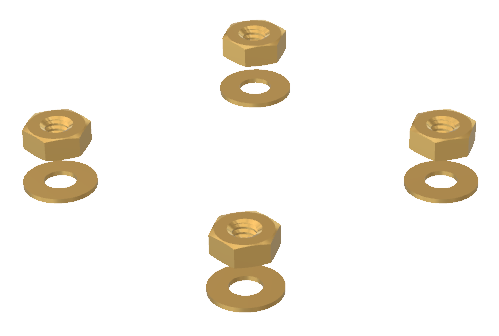

Lid Full Nuts
Option for lower Height
M2 Full Nut - Brass
M2 Washer - Brass
Temperature Range
Base Component Material
PEEK has a continuous service maximum temperature of 250°C.
The Base component maximum temperature is limited by this spec to 250°C.
Lid Component Materials
PEEK Lid. PEEK Temperature of deflection under load is 160°C. The Lid Component when clamped down is under load so its maximum temperature is limited by this spec to 160°C.
Ceramic Lid is the choice for extending the temperature range. The Ceramic has a continuous operating maximum temperature of 800°C.
Silicone Rubber temperature range is -60°C to 250°C.
Full Socket Assembly with PEEK Lid
A socket assembly with a PEEK Lid has a temperature range -60°C to 150°C.
Note – when using a forced air temperature system to heat the DUT to say 125°C, the air flow could be at a significantly higher temperature than 125°C.
Full Socket Assembly with Ceramic Lid
A socket assembly with a Ceramic Lid has a temperature range -60°C to 250°C.
