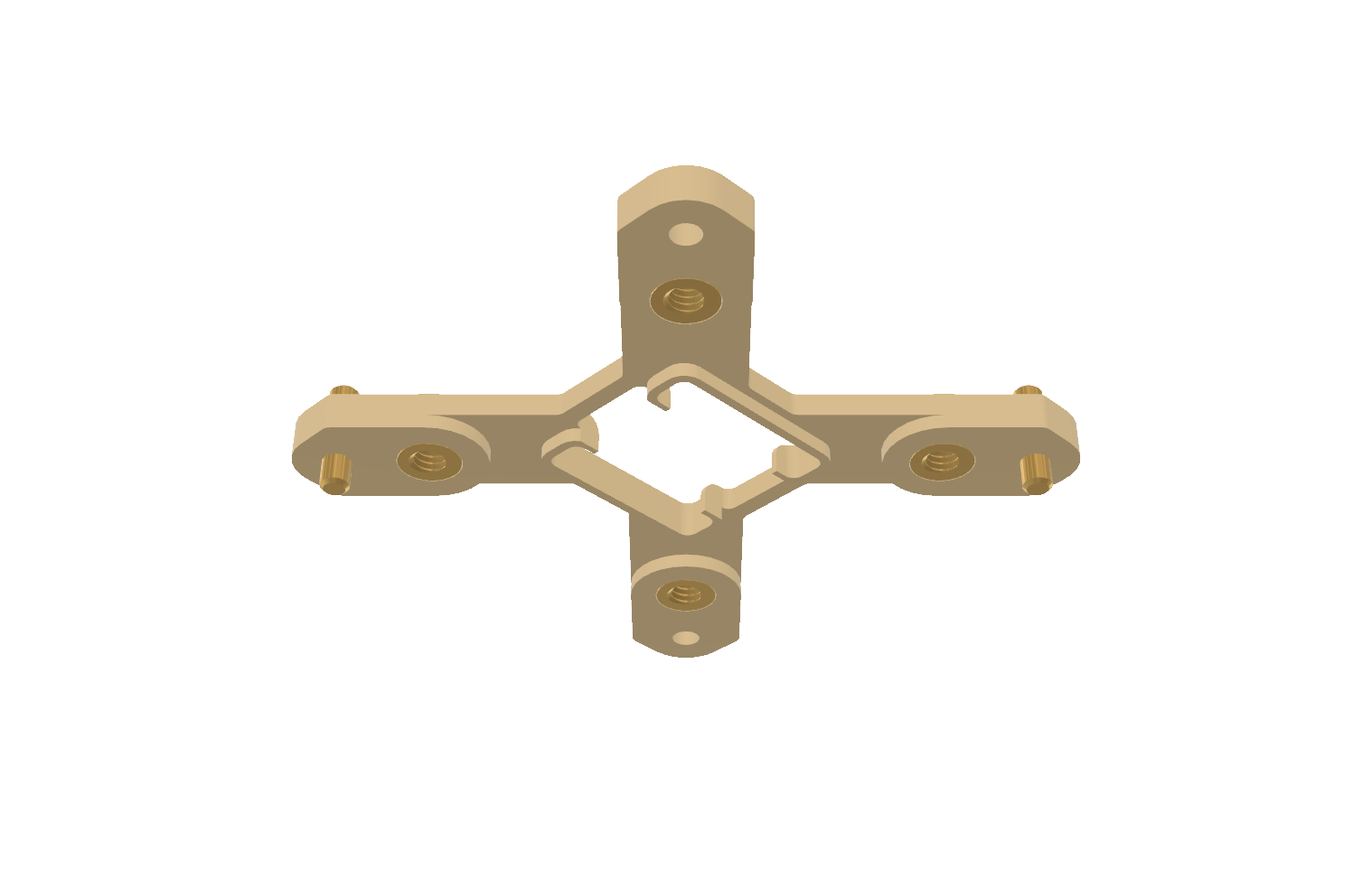

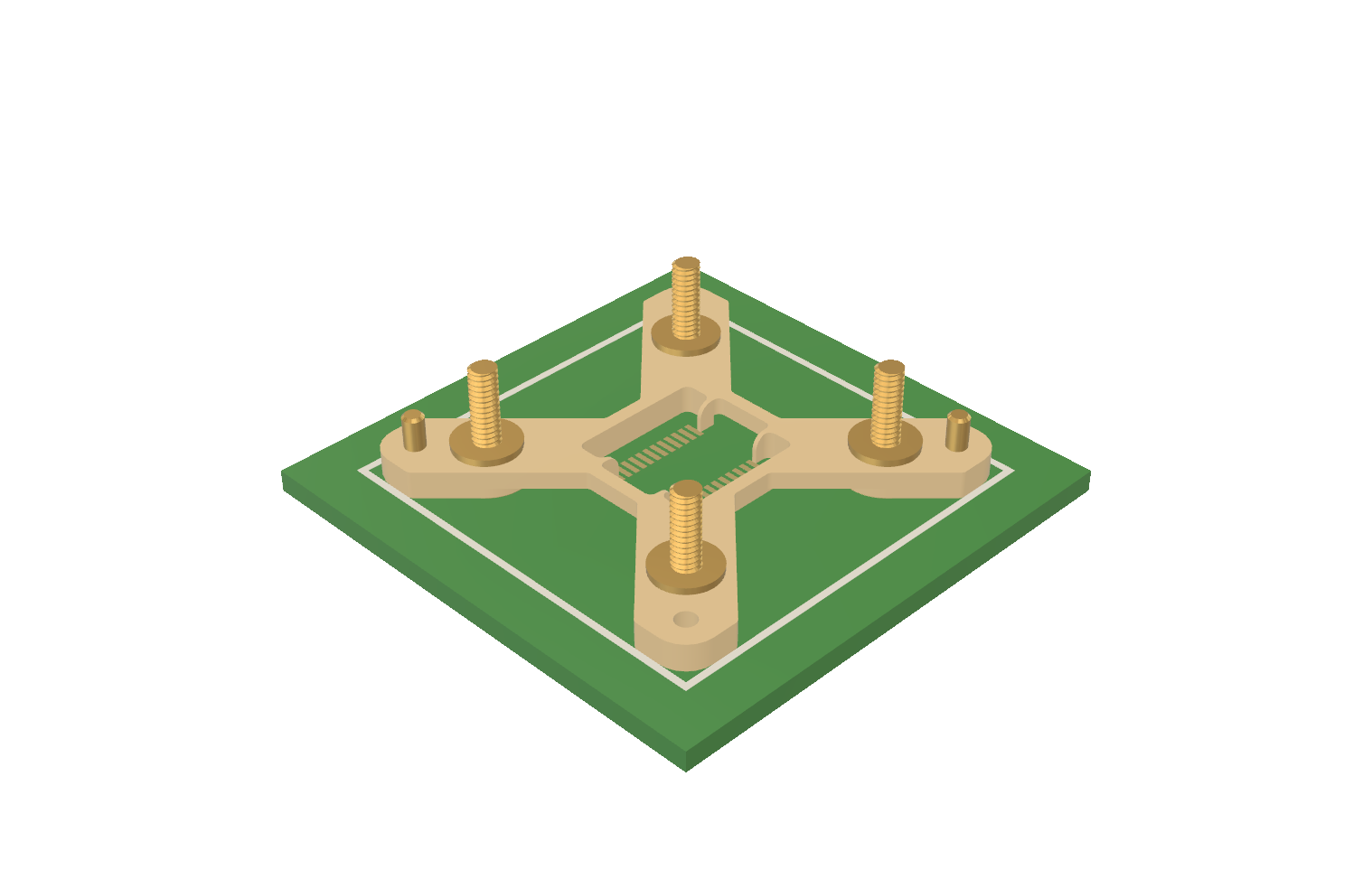

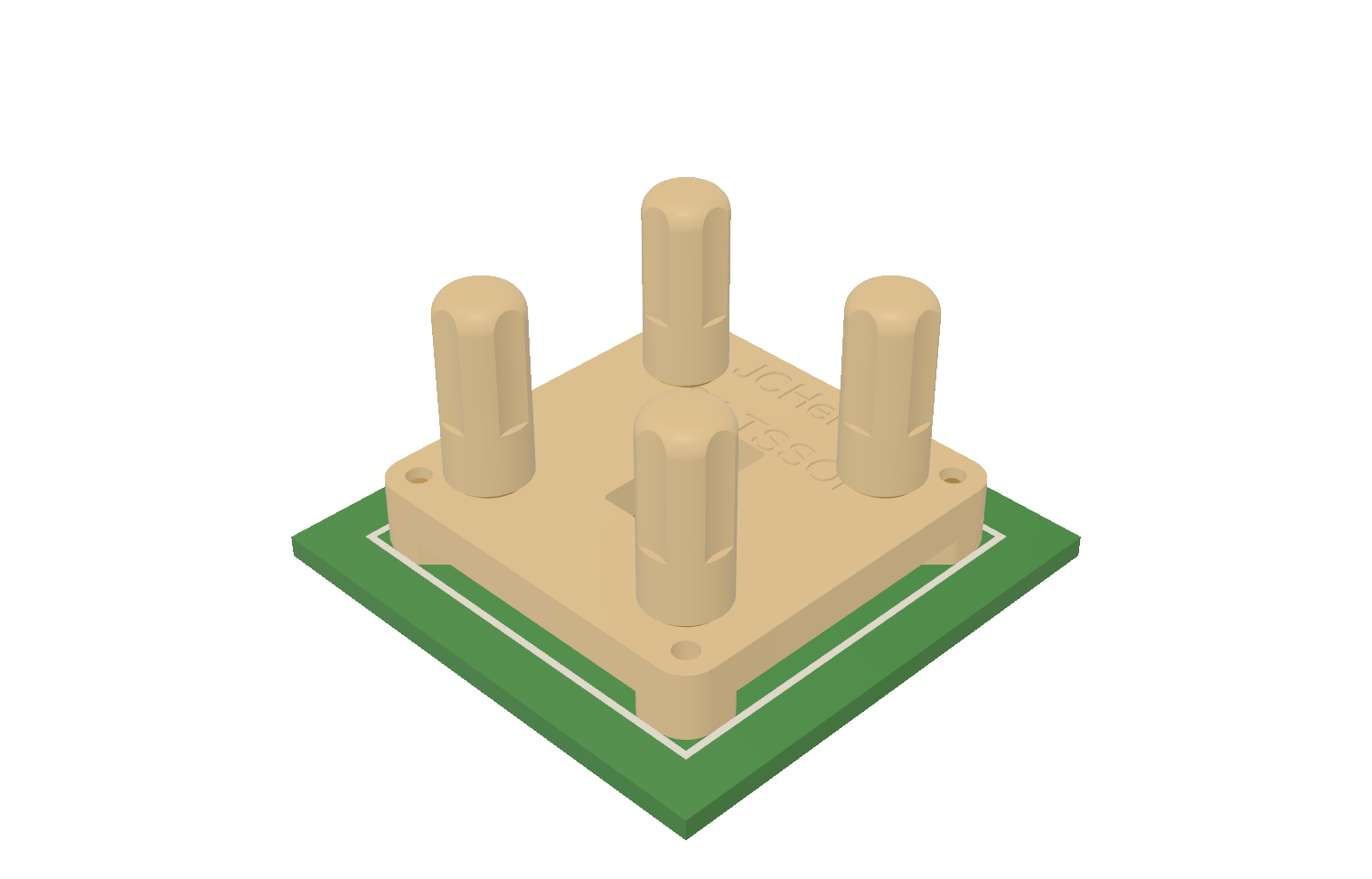

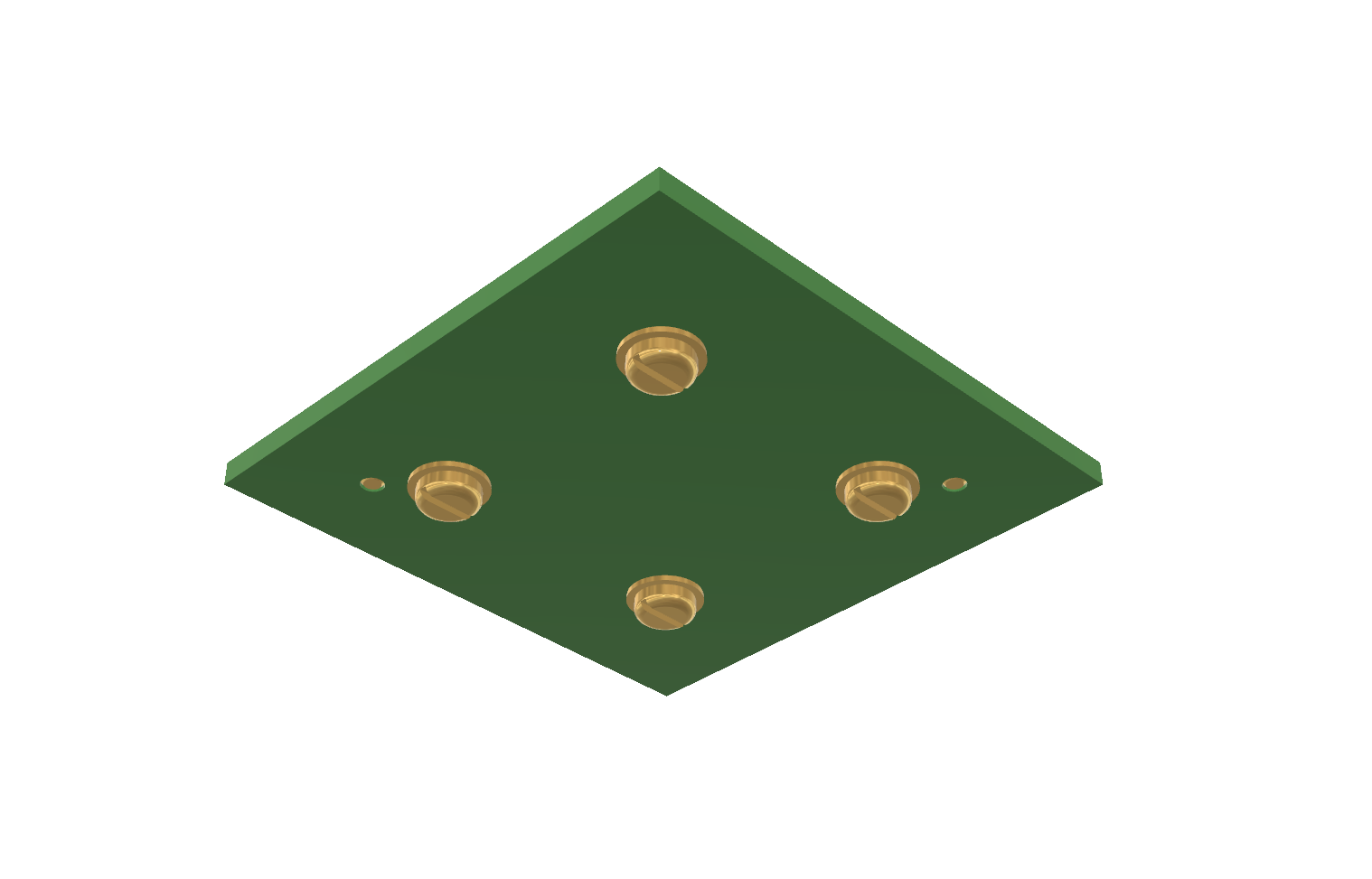

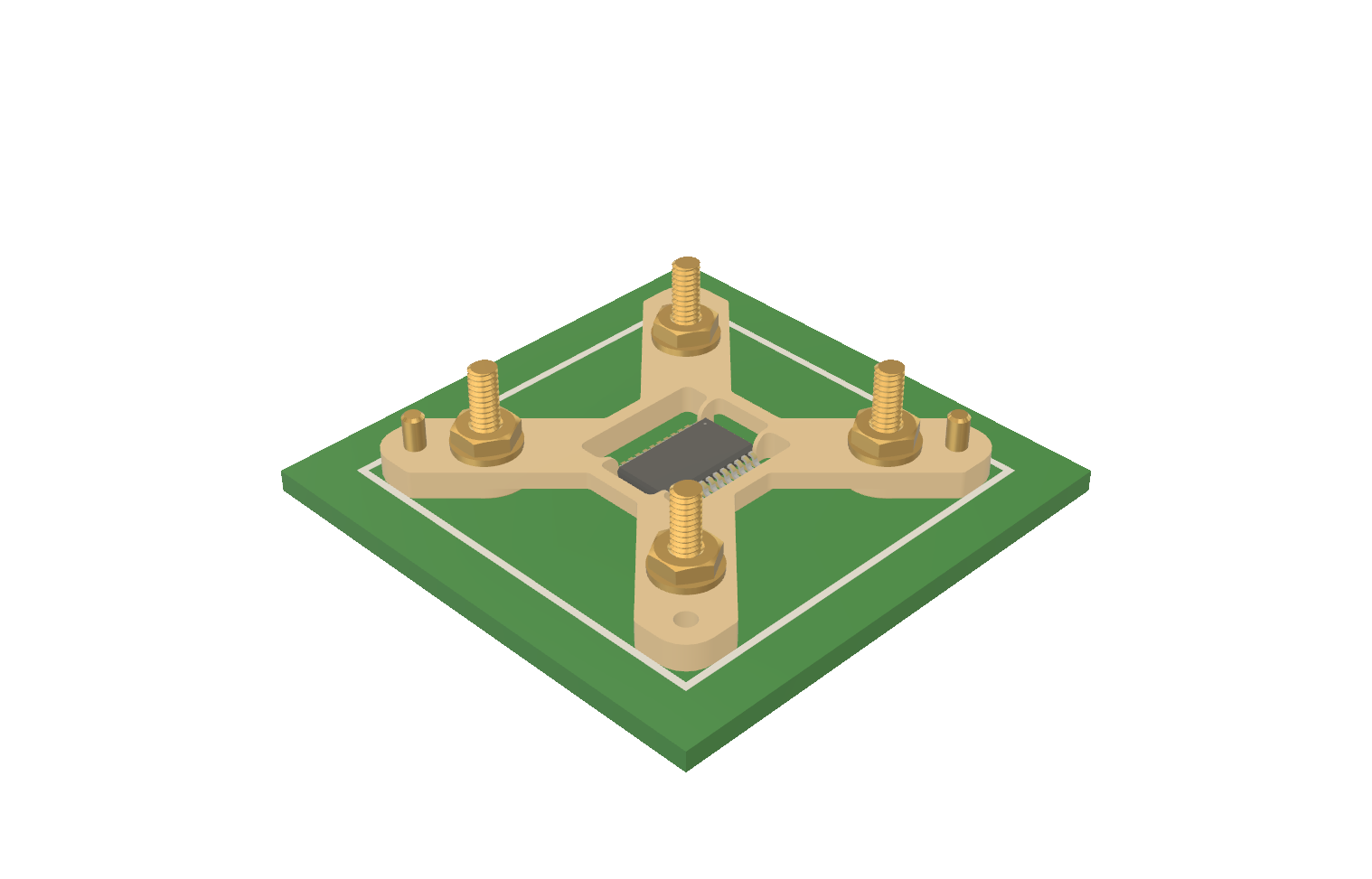

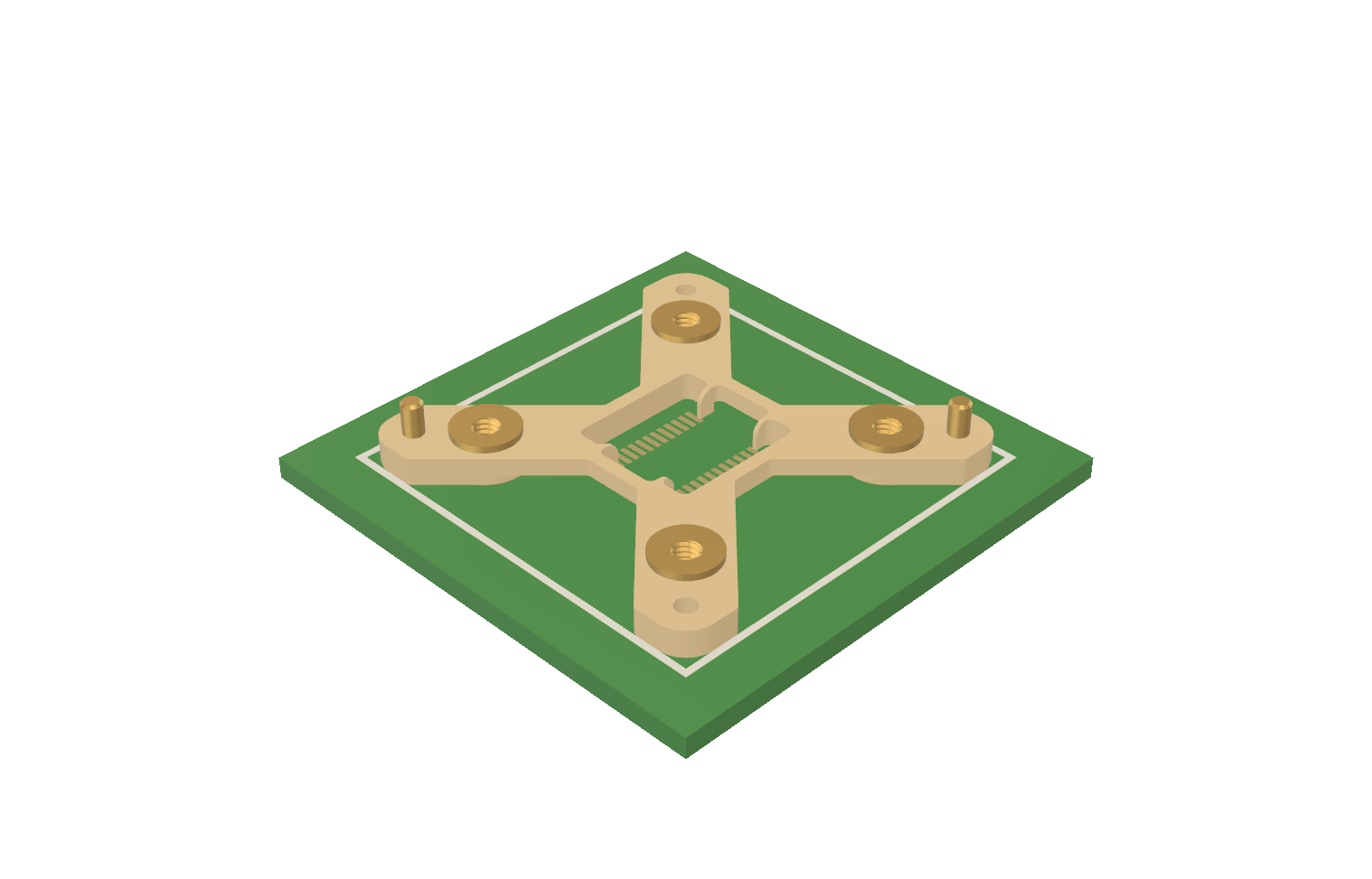

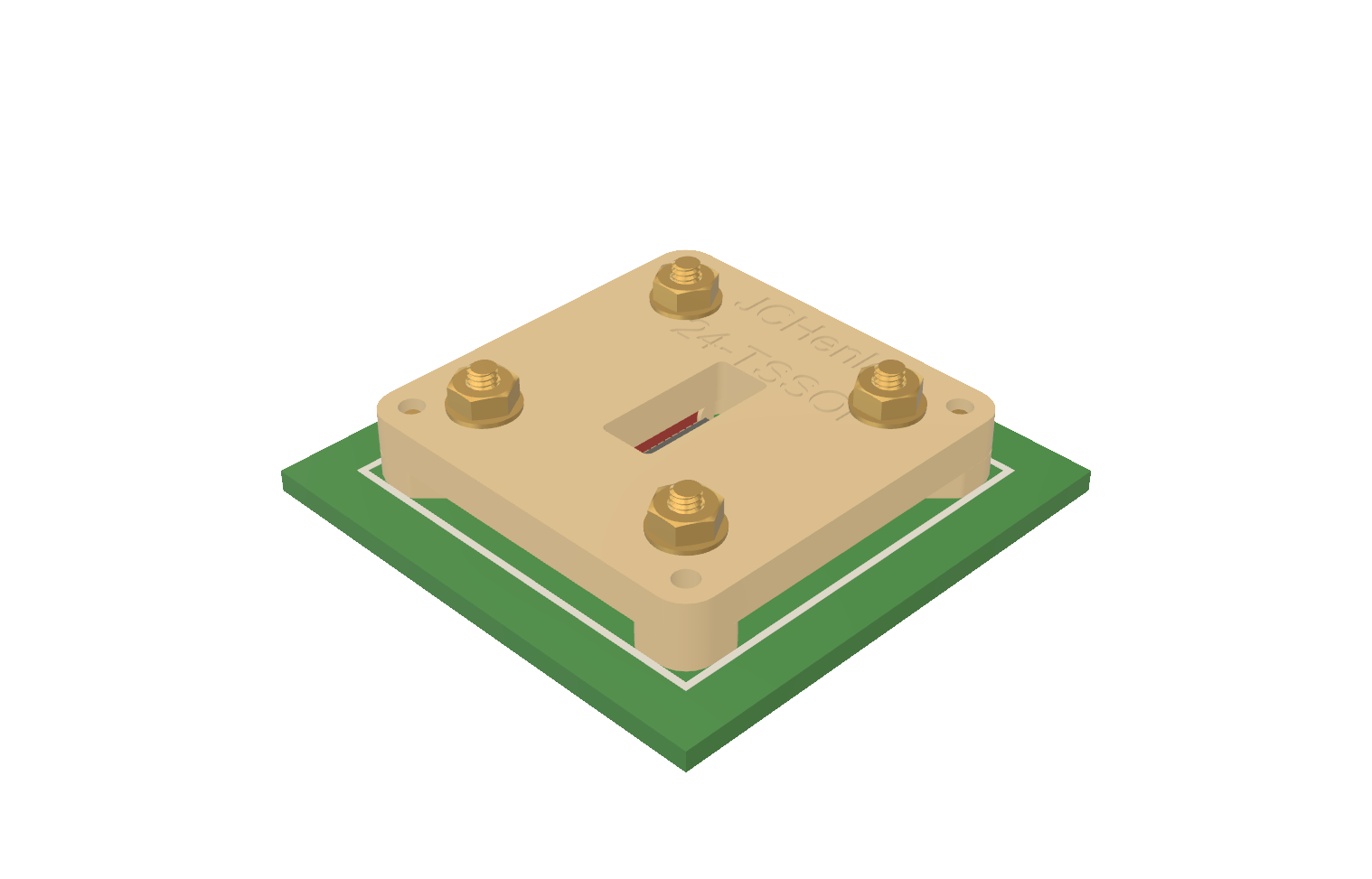

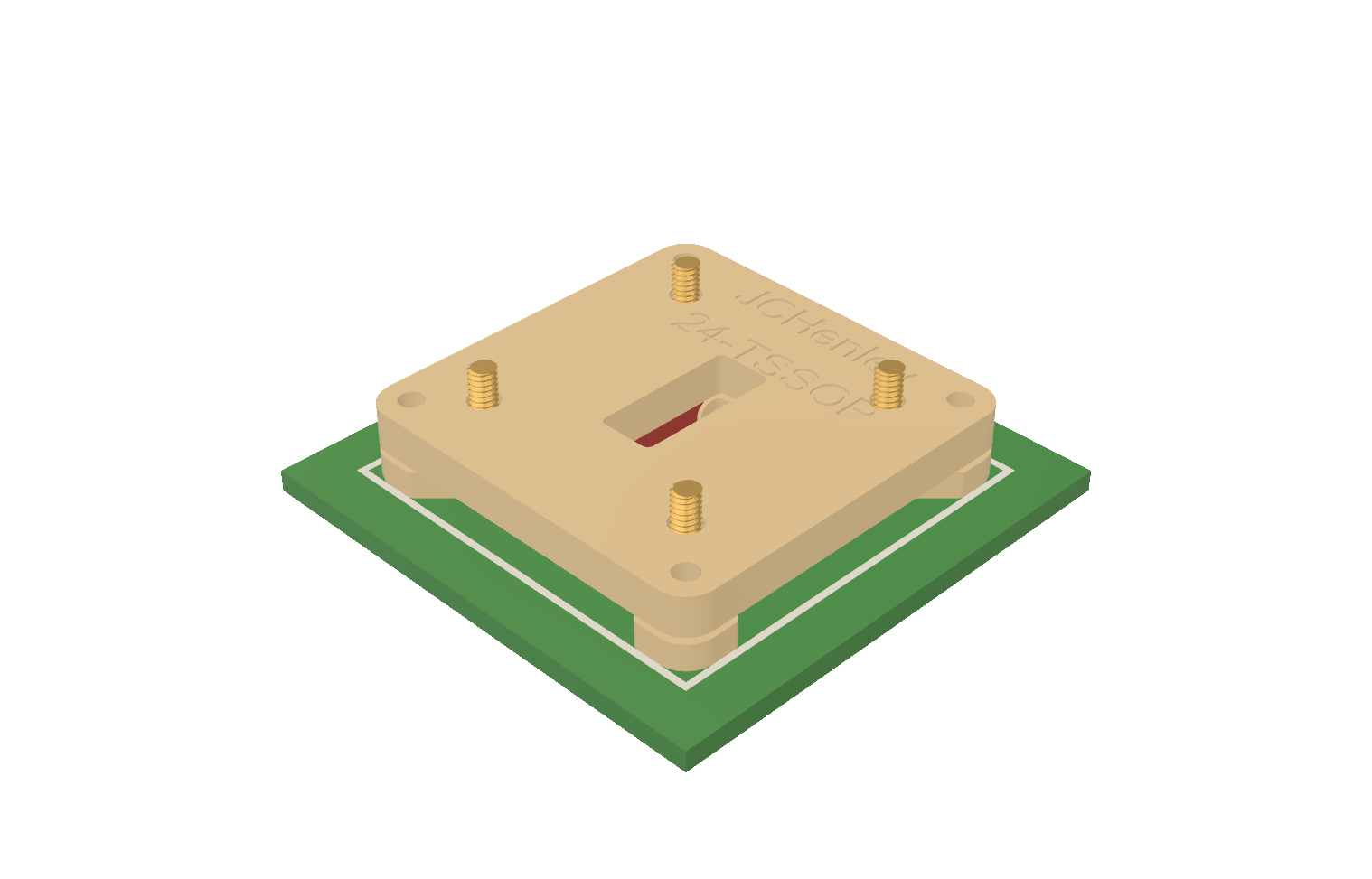

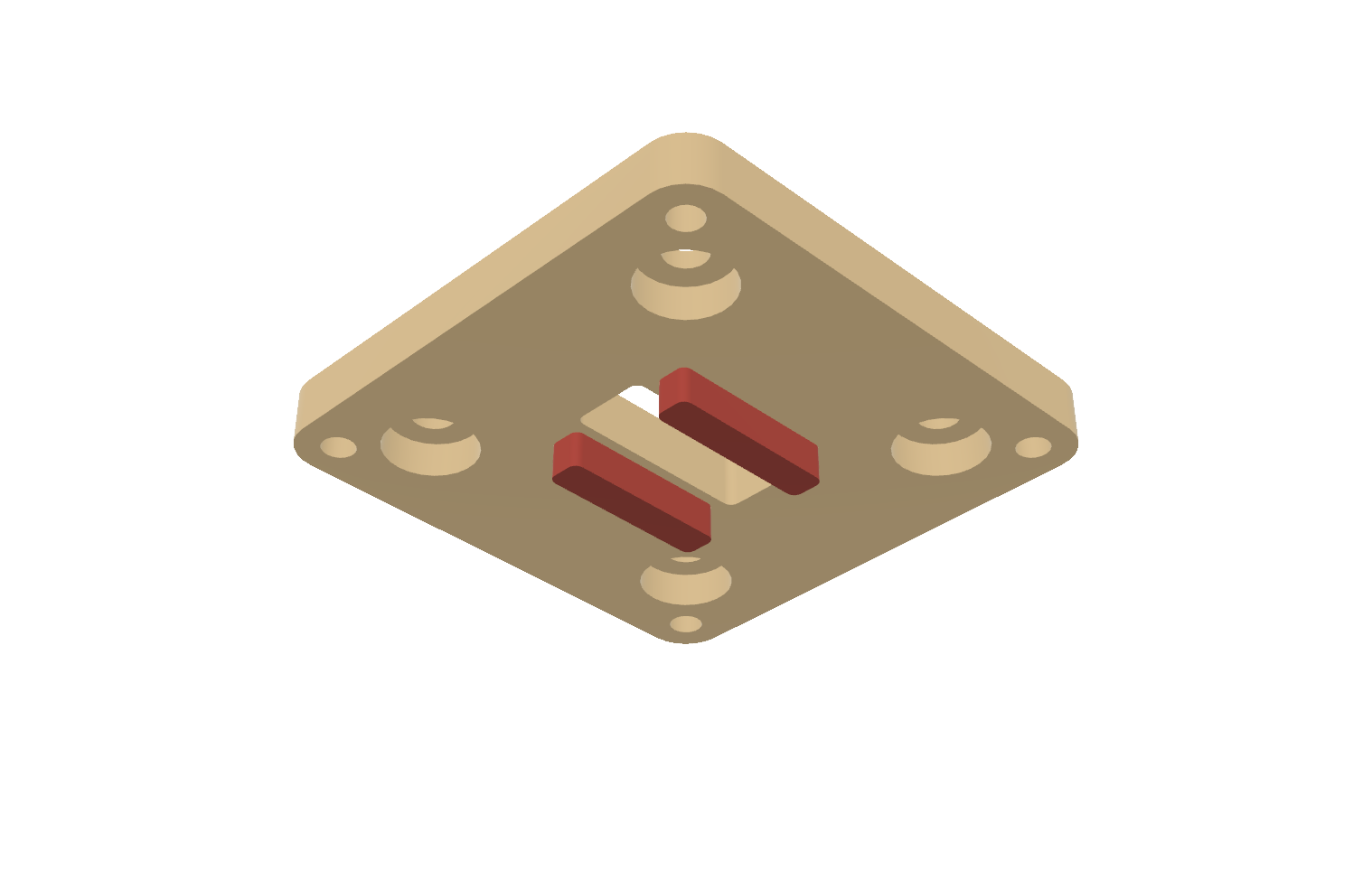

JCHenley Providing the Semiconductor Design Industry with Direct Contact Test Sockets CONTACT US Push to board IC test sockets. Manufactured to order in UK with no minimum order quantity Especially designed for use in: Evaluation Labs Failure Analysis Labs Application Labs The Device Under Test is pressed down onto the device’s standard PCB footprint Minimising unwanted parasitics in the contacting path. Components can be placed close to the device under test. Good for decoupling capacitors. Access to the top and bottom of the device under test Good for failure analysis work. Non-Magnetic Important for magnetic sensor evaluation. Works well with Forced Air Temperature forcing systems. Good air flow around the DUT A cost that does not prohibit customer modifications User experimental modifications Custom Solutions available. Modify an existing model or develop a new requirement. Example Product Assembly Click Through Download Example Dimensioned Drawings DownloadExample with PEEK Lid DownloadExample with Ceramic Lid Extended Temperature
